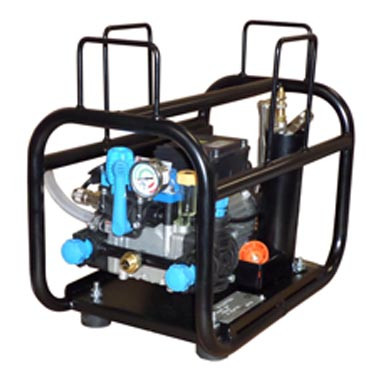

Electric injection pump

SPECIFICATIONS
  • Engine : Single phase electric engine - 230 V - 0.6 HP
  • Pressure : 20 bar
  • Product flow : 19 l/min
  • Pump : injection pump
  • Pump rotation speed : 300 / 650 rpm
  • Engine/pump : mounted on silentblocs
  • Manual pressure regulator : with manometer, with recycling and rinsing valve
STANDARD EQUIPMENT
  • 0.45 m spraying lance with adjustable handle
  • 12 m spraying hose
  • 1.5 m suction hose with screen
  • 1.5 m return hose
  • 1 nozzle to inject in wood framework ‘s dowels
  • 4 nozzles to inject in concrete with an independant valve
  • 2 integrated sockets to plug in a light or a drill
  • For all liquid products (except for products made from  methylene chloride or cellulosic solvents)
  • Usable products : see technical sheet
Main features
  • Anti-merulius (fungicide)
  • Anti-saltpetre
  • Insecticide
  • Water proofing
MODELS
REFERENCE FLOW RATE PRESSURE POWER WEIGHT DATA SHEET
l/h bar Engine kg
PINJ20 19 20 0,6 38
